Nthusim Test Rig

stats
Thumbnail:
Thumbnail image
Owner:
Using:
NTHUSIM Plus
Hardware:
2x Nvidia 470GTX in SLI mode, 3x Benq MP776-ST (3D Ready)

We’re lucky in the fact we found a spare 180 degree spherical screen lying around our office, so we though we'd give Nthusim a try!

NTHUSIM Plus was aligned using single PC (using an Nvidia 285 GTX), horizontal spanned desktop using a Digital Matrox Triple Head to Go and three Benq MP776-ST projectors.

We used a standard laser level (available from all good hardware stores) to assist with getting the horizontal and vertical grid aligned correctly.

Here's the result  .............



 Nthusim Plus Alignment

Figure 1: Nthusim Plus set-up

To test we tried Crysis and Tom Clancy Hawks.

Nthusim running Cyrsis

Figure 2: Crysis

Nthusim running Hawks

Figure 3: Tom Clancy Hawks

[EDIT] We're planning to develop the set-up and Nthusim Plus to support 3D Vision Surround. Waiting on the new NVIDIA cards and drivers, so watch this space for updates smiley

Videos:
See video
See video

Looks great! I like the screen design.

I also like the idea of the laser leveler. The way I did it on my setup was merely use a string with a weight on the end of it to check alignment. The laser leveler idea is a lot better imho. smiley

[img=center]http://www.nthusim.com/sites/default/files/users/7/Nthusim_2013_sig_3.png[/img]

Sweet! Can I ask where did you got that curved visual screen since there is also depth curve in it.

Hmmmm Very  Nice guyssmiley

I like that little concave curve too...cheeky

I know you wont give up too much, but is concave all the way or just the ends???

Nat

melnato wrote:

I know you wont give up too much, but is concave all the way or just the ends??

Happy to share. The screen is concave in shape - approx 180x45 degrees. It's going to be a part of a new product range which we are working on.

It was nice to have a spare screen lying around to test wink

Thanks Andy,

Besides looking HOT, what are the technical/perspective benefits from a concave circular screen?

So jealous....smiley

Nat

Vrgamesterz (not verified)

Please more pictures......  im droooling, I need more, atleast a video...

Excellent setup Andy. You can have some fun with thatsmiley



I planned to build a double-curved screen (plywood of course). But did not have enough space for itsad

Vrgamesterz wrote:

Please more pictures......  im droooling, I need more, atleast a video...

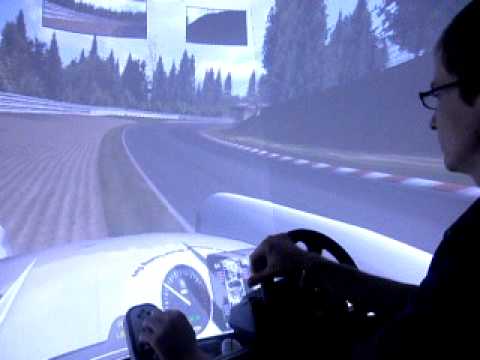

We're working on adding a racing seat to the set-up, so once up and running, more on the video front will follow smiley

TooTubular (not verified)

This is exactly what I've imagined (probably a bit smaller screen for me though)! Looks like it'd be great for everything. Very cool.

I see you have the racing setup built. I like the video. smiley

[img=center]http://www.nthusim.com/sites/default/files/users/7/Nthusim_2013_sig_3.png[/img]

BHawthorne wrote:

I see you have the racing setup built. I like the video. smiley

You'll have to excuse the driving ability .... the video was a quick snapshot of our plans. We're still in motion, but keeping everyone posted on developments. smiley

With racing and flight sims I'm more of a builder than player at the moment myself. My driving and flying ability are very beginner in most of the games I play. Mostly because I have been picking up a lot of Steam game deals and I never stick to playing one game. A lot of simpit builders can be seen as gaming specialists, while my gaming style is more casual and generalist. (IE: my skills at games are not all that great *chuckle*)

[img=center]http://www.nthusim.com/sites/default/files/users/7/Nthusim_2013_sig_3.png[/img]

Thats unreal (videos)!

Can i get a job at NThusim? smiley

Nat

fabioldr (not verified)

Where did you get that screen???

It's awesome! I Have to have one!
